Tunable External Cavity Laser

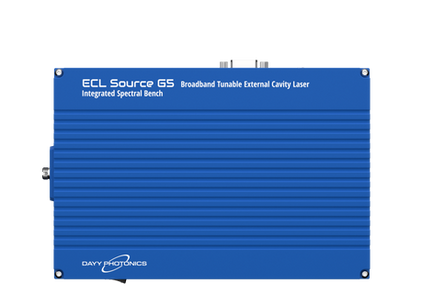

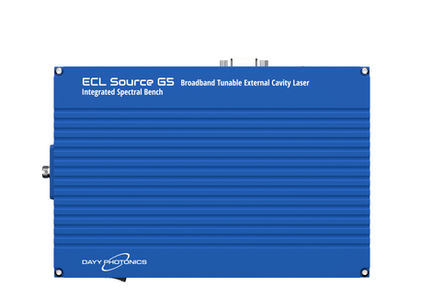

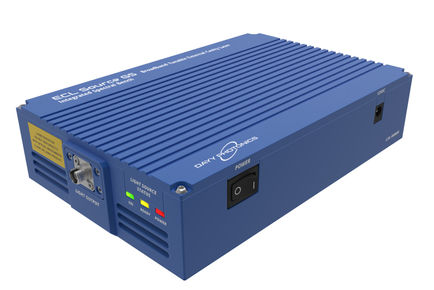

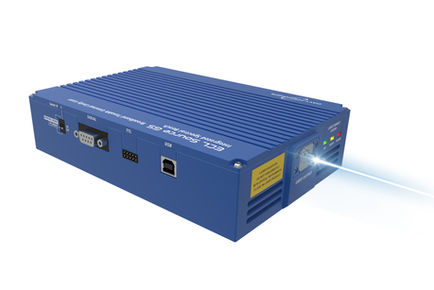

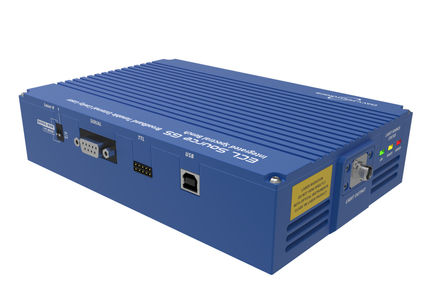

Broadband Tunable External Cavity Laser (G5)

G5 Integrated Spectral Bench (ISB5)

  • Broad tuning range

  • Narrow linewidth

  • Stable fiber-coupled output

  • Flexible control

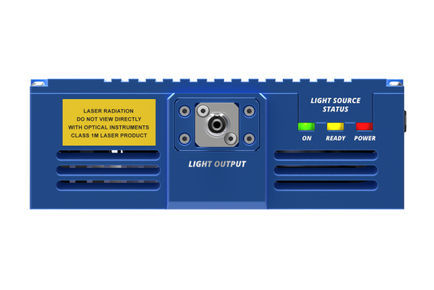

DAYY Photonics Broadband Tunable External Cavity Laser (ECL) can be tuned across various ranges depending on the model centre wavelength. The self-contained, tunable laser is based on the use of a semiconductor gain module and an integrated tunable filter. The optical output for this product is fiber-coupled via an FC/APC connector, and single mode or polarization maintaining fiber patch cables.

SOFTWARE
A user-friendly GUI is included with this product which allows the user to select between manual, stepped sweep, and continuous sweep modes. Operating parameters for each mode can also be set within the GUI, and direct readout of the operating wavelength are also provided. The laser can also be operated without the software GUI via modbus protocol with serial commands, which requires the instrument to be connected to the PC using the RS-232 or USB ports

Key Features

  • Center wavelengths available: 785nm, 850nm, 930nm, 980nm, 1050nm, 1210nm, 1250nm, 1300nm, 1350nm, 1410nm, 1550nm, 1590nm, 1625nm, 1680nm

  • Tuning range: 5nm-80nm depending on model

  • •FWHM: 0.1nm – 1nm depending on model

  • •Fiber-coupled output power: >10mW per wavelength

  • Tuning speeds up to 10hz across the full spectrum for continuous tuning

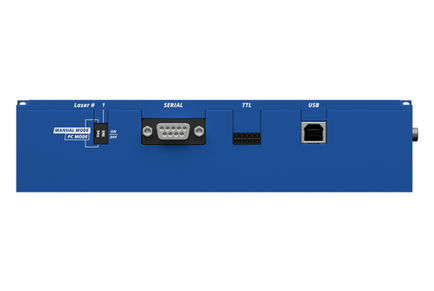

  • Multiple communication interfaces: USB, RS-232

  • Monolithic integration of a Broadband Dual Stage Isolator

  • User friendly GUI and custom API available for test automation

Applications

  • Optical Component Testing

  • Telecom Test Equipment

  • Medical Optical Coherence Tomography

  • Industrial Optical Coherence Tomography

  • Spectroscopy

  • Industrial and biomedical imaging systems

  • Optical Sensing

  • Test and Measurement

  • Research and Development

Part Number
Description
MSRP (USD)
Product Data Sheet
ASM123456

Template to be updated

$449 (USD)
ASM676767

Tuneable laser description 1

$5999 (USD)
